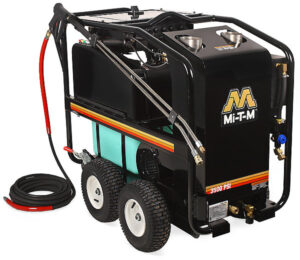

DHS Series Portable Electric Belt Drive

Name: DHS Series Portable Electric Belt Drive
Brand: Mi-T-M
SKU: DH-2504-SE0E2G
Availability: InStock

DH-2504-SE0E2G

Contractors rely on the DHS Series for its efficiency, reliability and longevity. It is heavy-duty and is great for melting away greasy residue and debris on industrial and commercial worksites.

Pump:
·External bypass system protects from heat build-up
·Factory preset unloader
·Forged brass manifold
·Thermal relief valve
·High pressure detergent injector

Motor:
·Totally enclosed fan-cooled electric motor with manual thermal overload protection
·35-foot power cord

Frame:
·Reinforced powder coated steel tube frame with center balanced lift
·13-inch flat-free tires

Components:
·Energy-efficient top-fired heat exchanger
·No. 1 or No. 2 diesel or kerosene fired burner (Not approved for bio-fuel)

Miscellaneous:
·Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 225°F

Unit Includes:
·Quick connect nozzles – 0°, 15°, 25° and 40°
·50-foot x 3/8-inch steel wire-braided high pressure hose
·Adjustable pressure insulated dual lance
·Professional-grade insulated trigger gun with safety lock-off

Limited Warranty:
·1 year electric motor

Certification:
·ETL Certified – US and Canada

Weight	699 lbs
Dimensions	49.5 × 28 × 40.5 in
Grade	Industrial
Water Temperature	Hot Water
Drive Type	Belt Drive
PSI	2500
GPM	3.2
Horsepower/Motor	6.0 HP, 230V, 1Ø, 25.0A
Pump	General
Plug Type	NEMA 6-30P
Burner Fuel Tank Capacity	10.0 gallons
Burner Fuel Consumption	2.10 gph
BTU Per Hour	294,000

Weight & Dimensions

Width	28
Height	40.5
Length	49.5
Shipping Weight	699
Net Weight	569

Product Sheet

Product Manual

Options

HX-0070 – Auto Start/Stop
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled, unit will restart

HX-0071 – Auto Start/Stop – Steam
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled, unit will restart; reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F

HX-0074 – Auto Start/Stop – CAD Cell
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled, unit will restart; monitors burner for proper ignition

HX-0075 – Auto Start/Stop – Steam – CAD Cell
When trigger gun is released, the timer will turn unit off; when trigger gun is pulled, unit will restart; reduces pressure to 350-PSI by adjusting unloader valve counter-clockwise, spray temperatures will rise 240°F above ambient with a maximum of 300°F; monitors burner for proper ignition (Includes adjustable thermostat)

HX-0088 – Skid Feet
Stationary applications

HX-0161 – Hour Meter
Displays the number of hours unit has been in operation

HX-0294 – Adjustable Thermostat
Operator is able to adjust outlet water temperature between 98°-248°F
